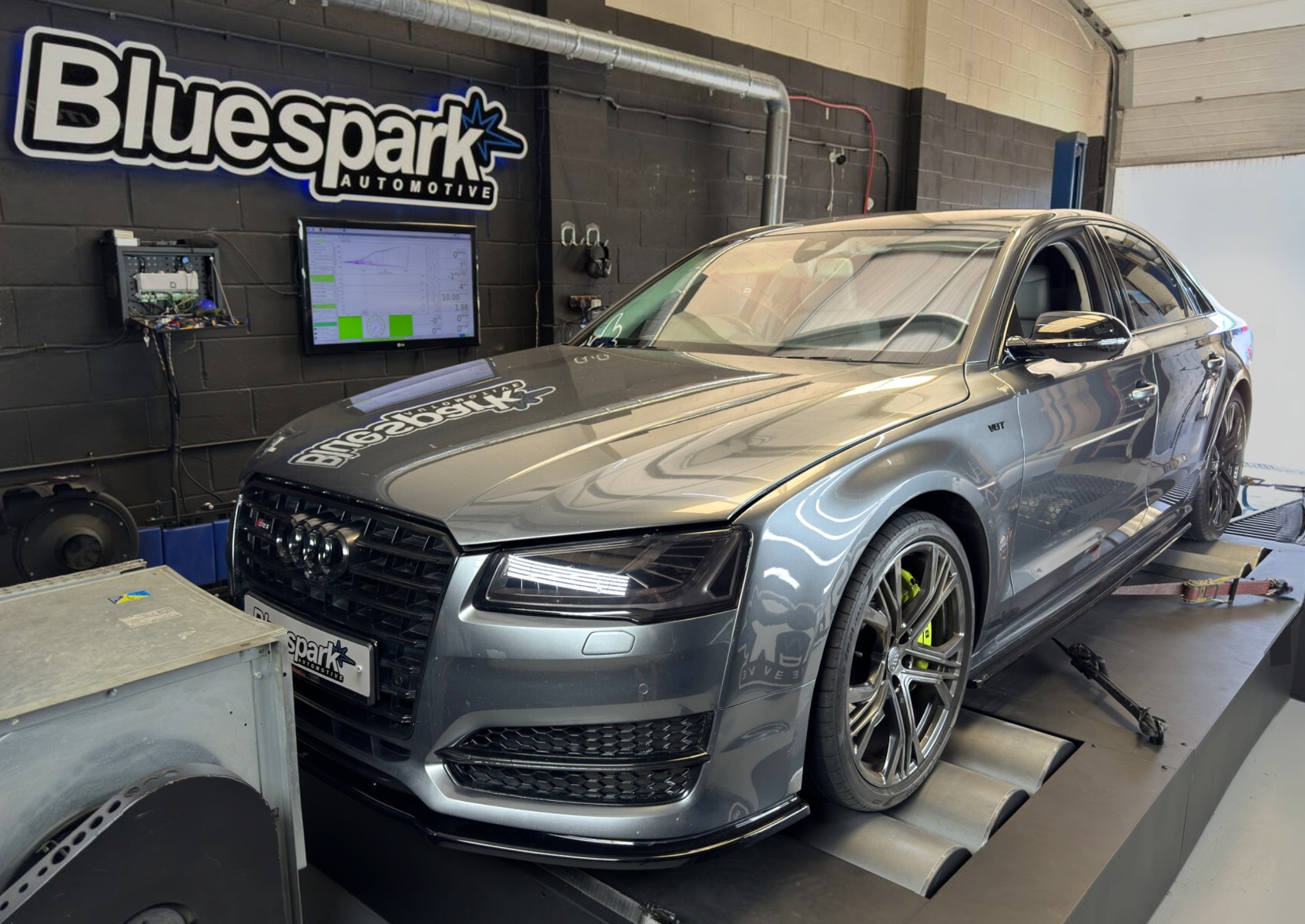

Here we install a custom Bluespark chip tuning box, on this Audi S8 (D4) 4.0 TFSI V8 Quattro.
This module is a customised version of our 3 Channel Pro Petrol box, which has been modified and is bespoke to this engine, accommodating for the additional boost sensor, meaning that we connect to both boost sensors, the map sensor and the cam sensor.
As shown in the installation guide, it’s important to note that either of our boost harness’ can be fitted to either boost sensor. Each of these will be labelled as ‘boost’, so either one can be attached to either boost sensor.
Time stamps in the video below:
0:00 Remove Engine Cover
0:08 MAP Sensor Location
0:13 Boost 2 Location
0:18 Boost 1 Location
0:23 CAM Sensor Location
0:30 Diagram of Locations
0:36 CAM Sensor
1:01 Boost Sensor 1
1:23 Boost Sensor 2
1:41 MAP Sensor
2:03 Connect & Secure
Check out the installation here, across on our YouTube channel:
Visit our dedicated page for more details on tuning for your Audi: https://bluesparkautomotive.com/audi-tuning
