BMW Autotuner ECU Unlock Explained | Post-2020 BMW Tuning

Why Are Post-2020 BMWs Difficult To Remap?

From around mid-2020 onwards, many BMWs were fitted with locked Bosch MD1 and MG1 ECUs. For owners looking for a traditional ECU remap, this creates a major obstacle. Before the ECU can be read or written in the usual way, it often needs to be unlocked first.

This is where names like FEMTO and Autotuner come up. Both are associated with ECU unlocking solutions, but the process is still more involved than a traditional remap and requires the physical ECU to be removed from the vehicle.

How To Check If Your BMW ECU Is Locked

The first thing to establish is the manufacture date of your ECU. This is not the same as the build date of your car, and it is certainly not the same as the registration date.

If your car’s build date is before June 2020, then it is very unlikely to have a post-June 2020 locked ECU. Similarly, if your UK registration date is before around September 2020, it is also unlikely to have a post-June 2020 ECU, because the car would have needed time to be manufactured, shipped, delivered to the dealer and registered.

If your BMW is late 2020, early 2021, or newer, it becomes more of a mixed picture. The only reliable way to know is to check the ECU label itself or visit a tuner who can inspect or identify it for you.

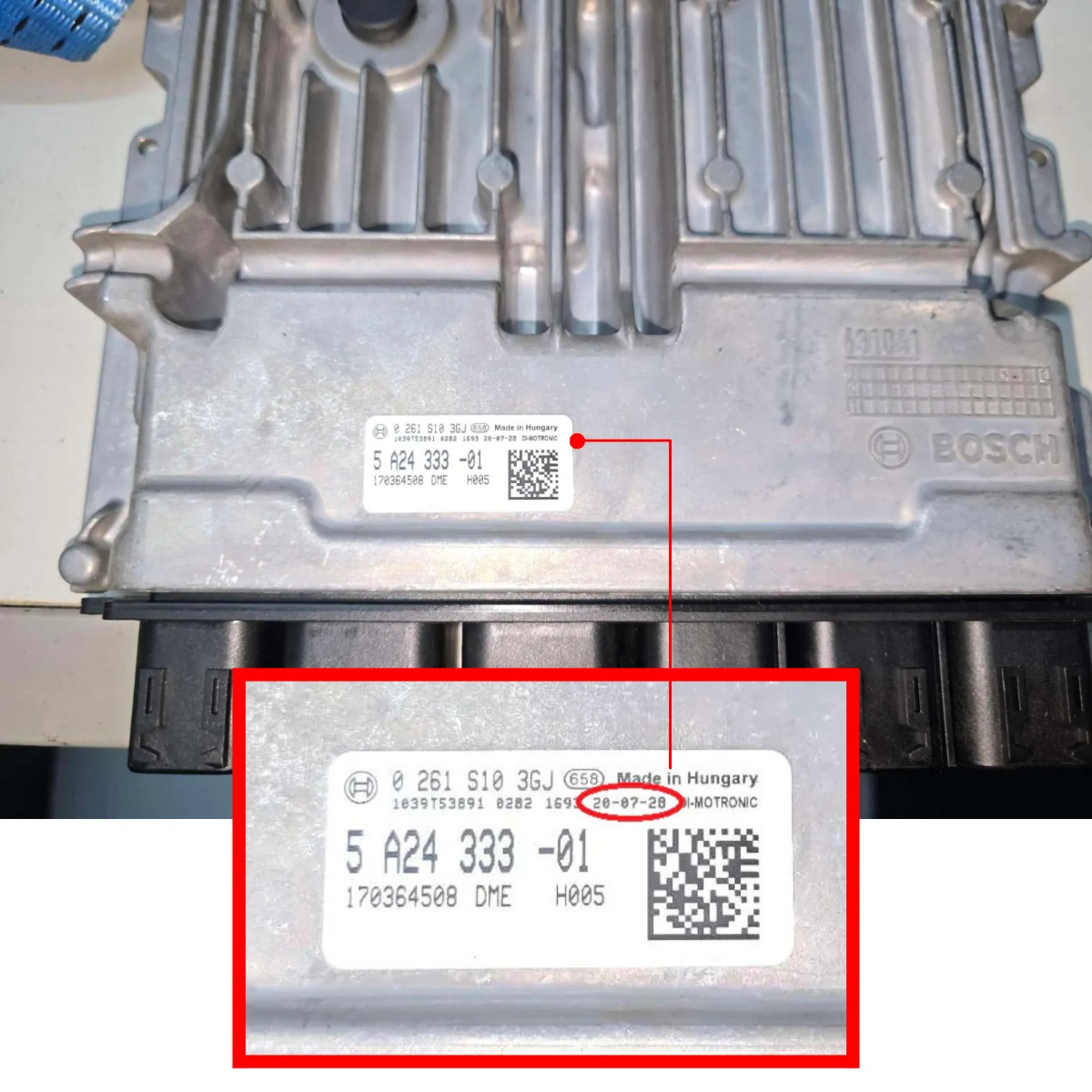

Reading The ECU Date

The ECU manufacture date is printed on the ECU label in a small format. For example, a date shown as 20-07-28 means 28th July 2020. This is written as YY-MM-DD: year, month, day.

In this example, the ECU was manufactured after June 2020, meaning it would usually require an advanced unlock process before traditional ECU flashing could take place.

What Is A Bench Unlock?

A bench unlock is a process where a tuner connects directly to the ECU outside of normal OBD flashing. On many older or pre-June 2020 ECUs, this is a relatively straightforward procedure for a competent tuning company.

In most cases, it can be done in-house as part of the remapping process. However, for many post-2020 BMW ECUs, a normal bench unlock is not enough, which is why services such as Autotuner Mail-in Unlock exist.

What Is The Autotuner BMW ECU Unlock?

Autotuner’s BMW Bosch MDG1 Mail-in Unlock is a service designed for supported post-2020 BMW, MINI, Toyota Supra, Rolls-Royce and related Bosch MDG1 ECUs. Instead of a local tuner simply unlocking the ECU in-house, the ECU must be removed from the vehicle and shipped to Autotuner for processing.

Once complete, the ECU is returned ready for Bench and OBD read/write operations using compatible Autotuner tools. This means the unlock is not the remap itself. It is the step that allows further tuning work to be carried out afterwards.

How The Autotuner Unlock Process Works

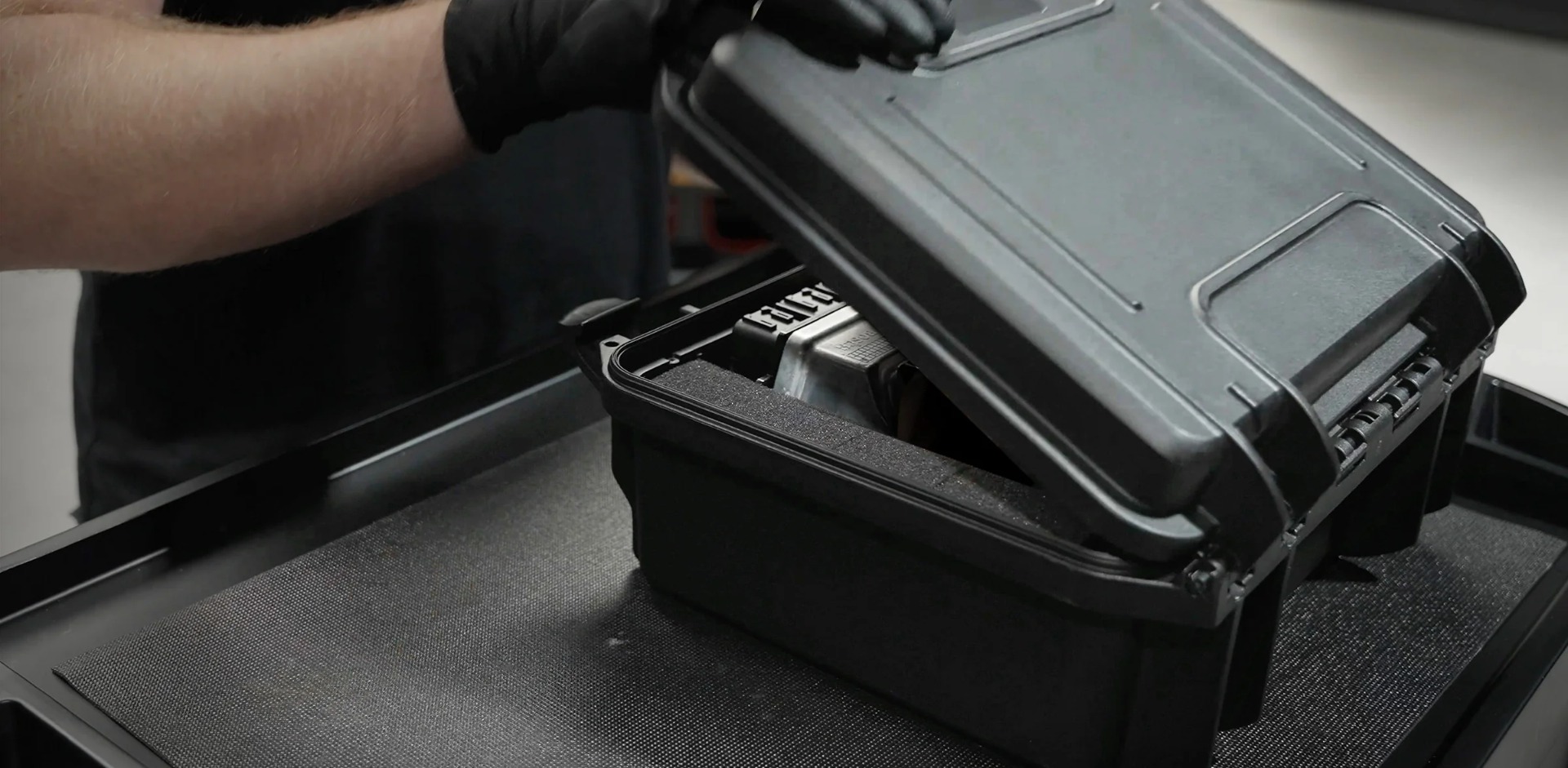

The Autotuner unlock process is more convenient than some earlier ECU unlock routes, but it still requires removing the physical ECU from the car. The vehicle will not run while the ECU is removed, so this needs to be planned carefully.

Autotuner states that the ECU is usually processed within the day once received, although this does not include collection, transport time, courier delays or customs clearance. The overall downtime will therefore depend heavily on logistics.

Does The ECU Need To Be Opened?

Autotuner now states that BMW Bosch MDG1 2020+ ECUs no longer need to be opened before sending for Mail-in Unlock. However, they also reserve the right to open the ECU if required and close it afterwards.

Will A Dealer Update Remove The Unlock?

According to Autotuner, a dealer update does not impact their Mail-in Unlock. This is a significant difference compared with some earlier unlock concerns. However, you should still speak with your tuner before carrying out dealer updates, as your tune, flashing platform or vehicle software version may still be affected.

Is It Compatible With BM3, MHD Or MG Flasher?

Autotuner states that Mail-in Unlock is compatible with Autotuner Tool and Autotuner One, but that compatibility with third-party tools cannot be guaranteed. This is important if you are planning to use another flashing platform after the unlock.

The Downsides Of Unlocking Your BMW ECU

While the Autotuner unlock provides another route for post-2020 BMW owners, it is still not as simple as fitting a plug-in tuning box.

The Bluespark Alternative: BMW Tuning Without Unlocking The ECU

If you would prefer not to remove and ship your ECU, a Bluespark tuning box offers a much simpler option. Our BMW tuning boxes are designed to work with the vehicle’s existing ECU calibration, without needing the factory ECU to be unlocked or flashed.

Installation can typically be completed at home in around 10 minutes, with no permanent changes to the ECU. The unit can also be removed when required, which is particularly useful for customers with warranty, servicing or future resale concerns.

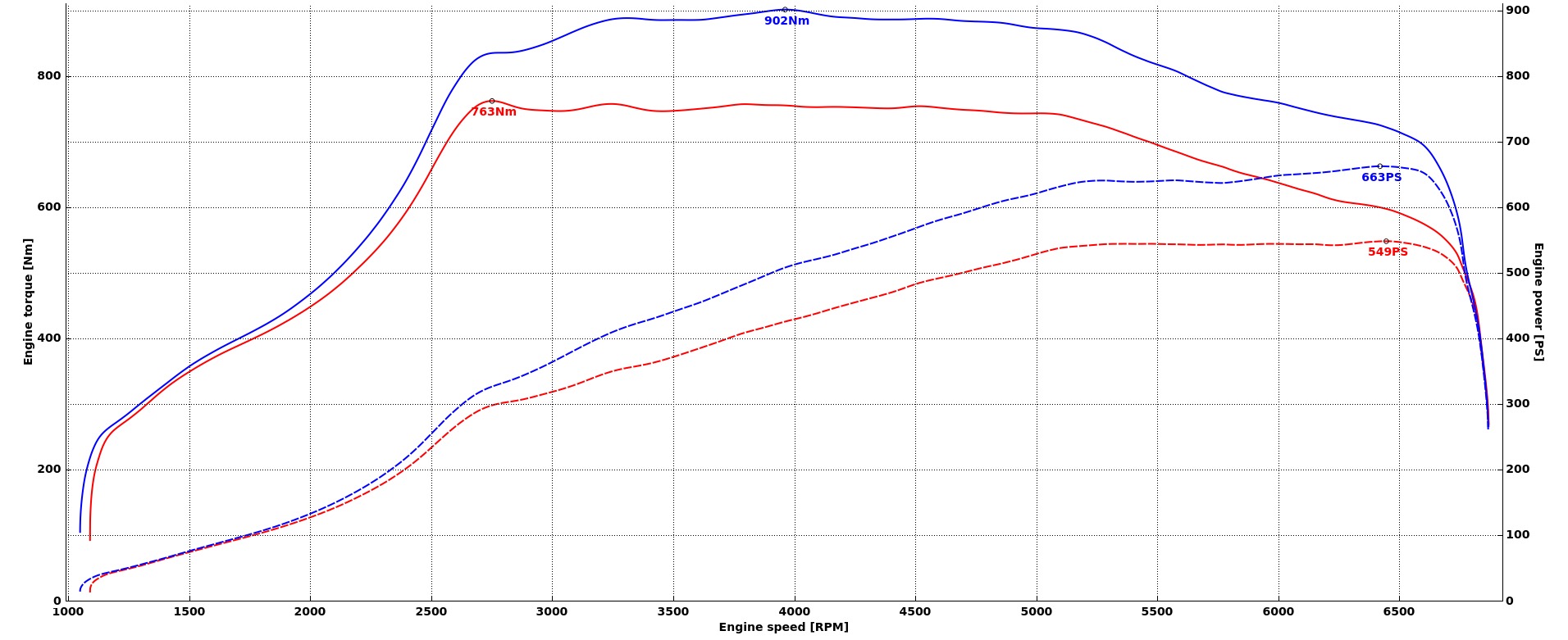

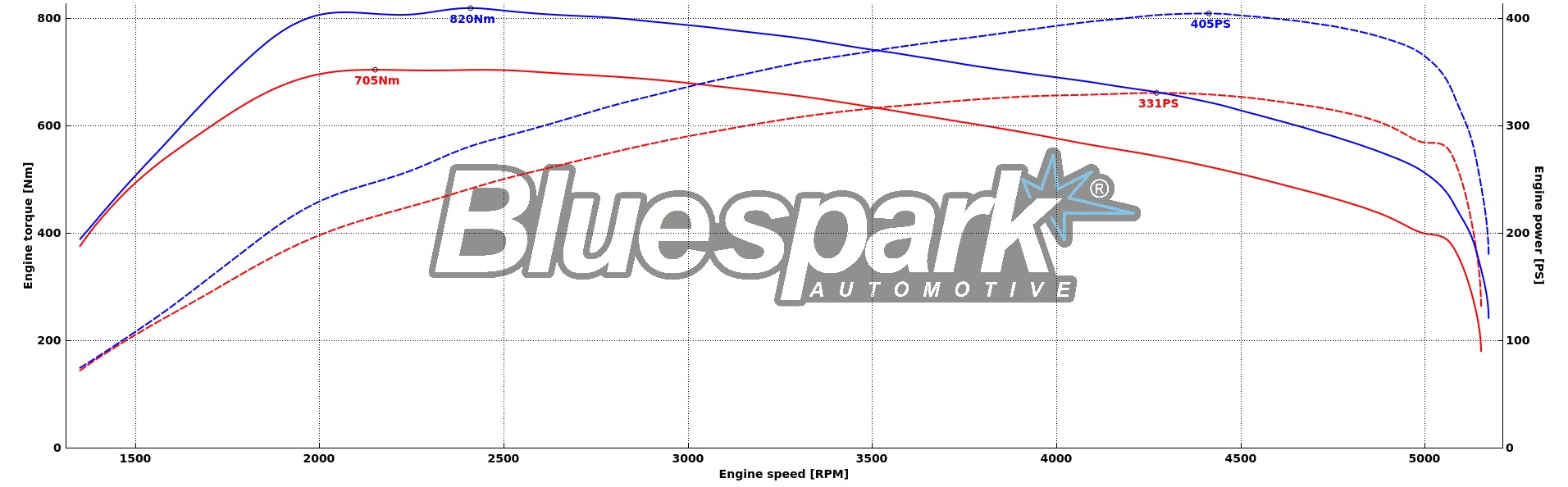

Real-World BMW Results

We have tested and developed tuning boxes across a wide range of modern BMW applications, including vehicles with locked ECUs. These results show why a plug-in tuning box is often the most practical option for owners who want noticeable performance gains without the disruption of an ECU unlock.
