Tuning Box: How it Works, Power Gains & Installation Guide
A tuning box is a plug-and-play engine performance module that connects to a vehicle’s sensors to increase power, torque and efficiency without permanently modifying the ECU.
It is one of the easiest and safest ways to increase the power, torque and efficiency of modern turbocharged engines. Unlike traditional engine remapping, tuning boxes are plug-and-play performance upgrades that can be installed in minutes without permanently modifying the vehicle’s ECU software.
In this guide we explain everything you need to know about tuning boxes, including how they work, how much power they can add, how they compare to ECU remapping and how to choose the right tuning box for your vehicle.
What Is a Tuning Box?

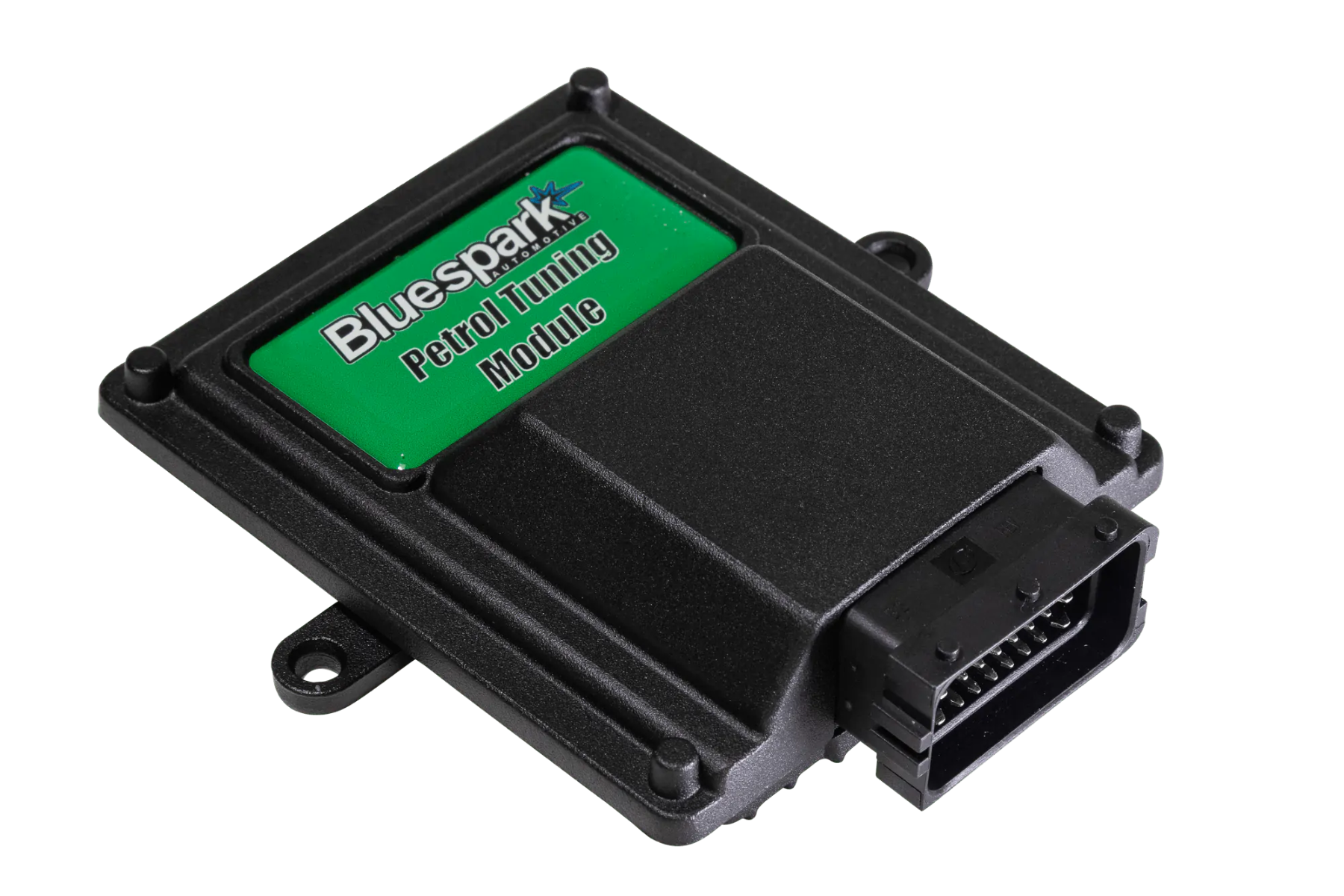

A tuning box is an electronic performance module that connects to your vehicle’s engine sensors and adjusts the signals sent to the ECU (Engine Control Unit). By optimising these signals, the ECU can safely increase engine performance, resulting in improved power and torque.
Unlike ECU remapping, tuning boxes do not overwrite the vehicle’s factory software. Instead they work externally by modifying sensor data in real time.
Because they do not permanently alter the ECU software, tuning boxes are:
reversible
easy to install
removable for servicing
transferable between compatible vehicles
This makes them one of the most popular performance upgrades for modern diesel and turbo petrol engines.
What Makes Bluespark Different?
Here at Bluespark we pride ourselves on providing the best tuning products and customer service. Our boxes are designed, developed and tested in the UK with expert engineering, in depth R&D and multiple levels of quality control.

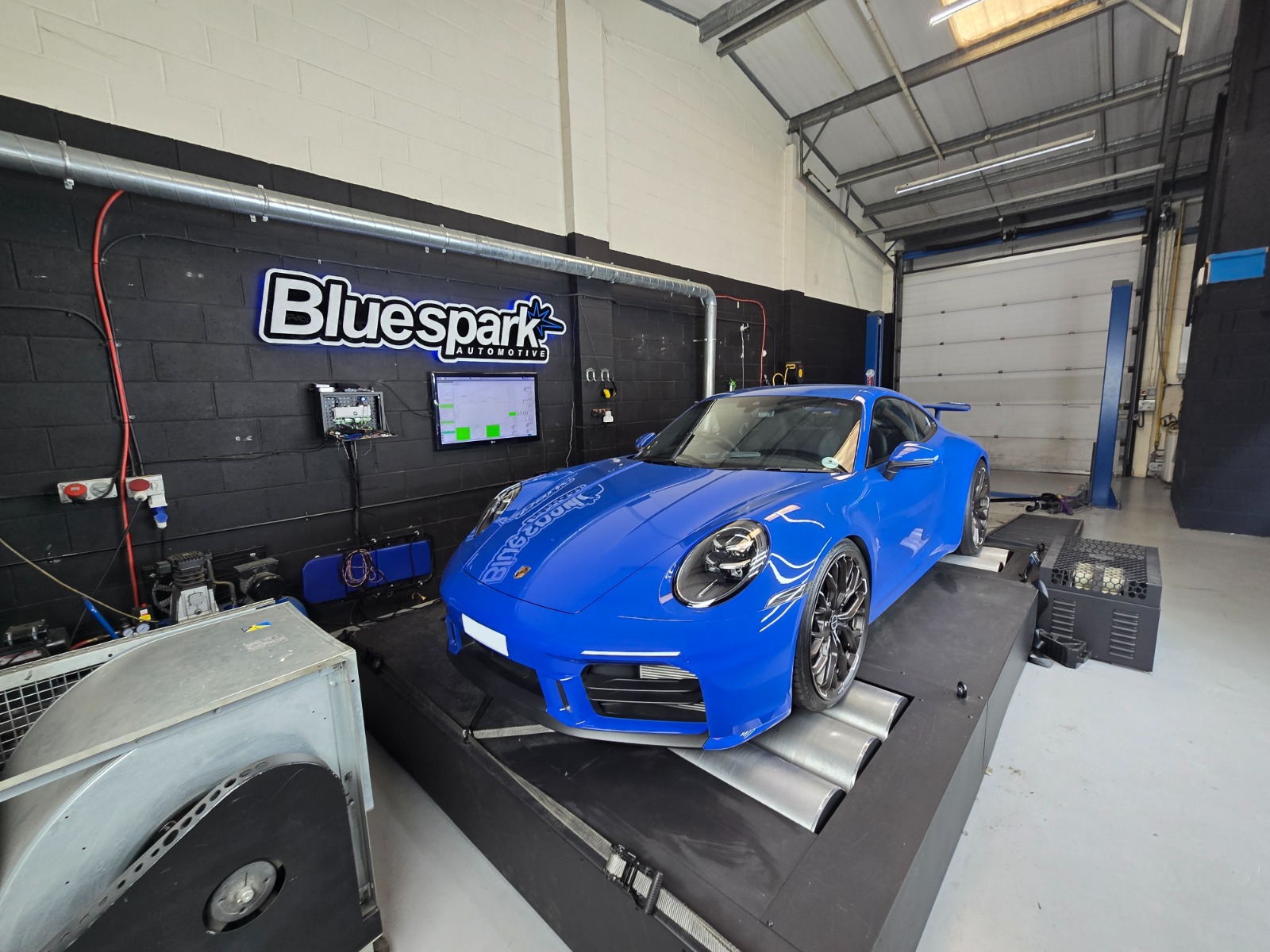

To authenticate our claims, we are one of the very few tuning box suppliers who our own in house 4x4 linked, braked rolling road dyno, along with a whole host of development and datalogging tools.
Our units have in-built datalogging features and can be can have their configurations remotely updated via Bluetooth.
This means that when you buy a tuning box from us you can rest assured that it has been developed and tested for your vehicle to make sure that it makes great power, drives properly, and most importantly is safe.
We are one of, if not the only tuning box manufacturer in the UK with proper R&D facilities. This is a considerable cost, but the value is passed into our products.
At Bluespark we have a team of highly trained engineers, technicians and customer service representatives on hand to provide the best possible customer support, something that we are renowned for and extremely proud of.
If you are ready to see what we can offer you, use the vehicle selector above to find your vehicle
How Does a Tuning Box Work?
Modern vehicles rely on dozens of sensors that feed information to the ECU. These sensors monitor key engine parameters such as:
- fuel rail pressure
- boost pressure
- airflow
- throttle position
- engine temperature
A tuning box intercepts signals from these sensors and adjusts them slightly before they reach the ECU.
The ECU then calculates fuel injection and turbo boost based on the adjusted data, allowing the engine to produce more power while remaining within safe operating limits.
High-quality tuning boxes are engineered to work within manufacturer tolerances, ensuring the engine remains reliable and safe.
More advanced tuning modules may monitor multiple engine parameters simultaneously to optimise performance across the entire rev range.
Please have a look at our dyno video testing our tuning box on the 8Y.5 RS3 opposite.
Audi 8Y.5 RS3 Tuning Box Dyno
The Audi RS3 has a locked ECU which means that traditional ECU remapping is not possible. A Bluespark tuning box can still be used on vehicles with a locked ECU. The 3 channel tuning box can be installed in less than 20 minutes and provides awesome results. The video below shows our dyno testing.
Typical Power Gains From a Tuning Box
One of the biggest reasons drivers install tuning boxes is the significant increase in performance they can deliver.
Just for example:

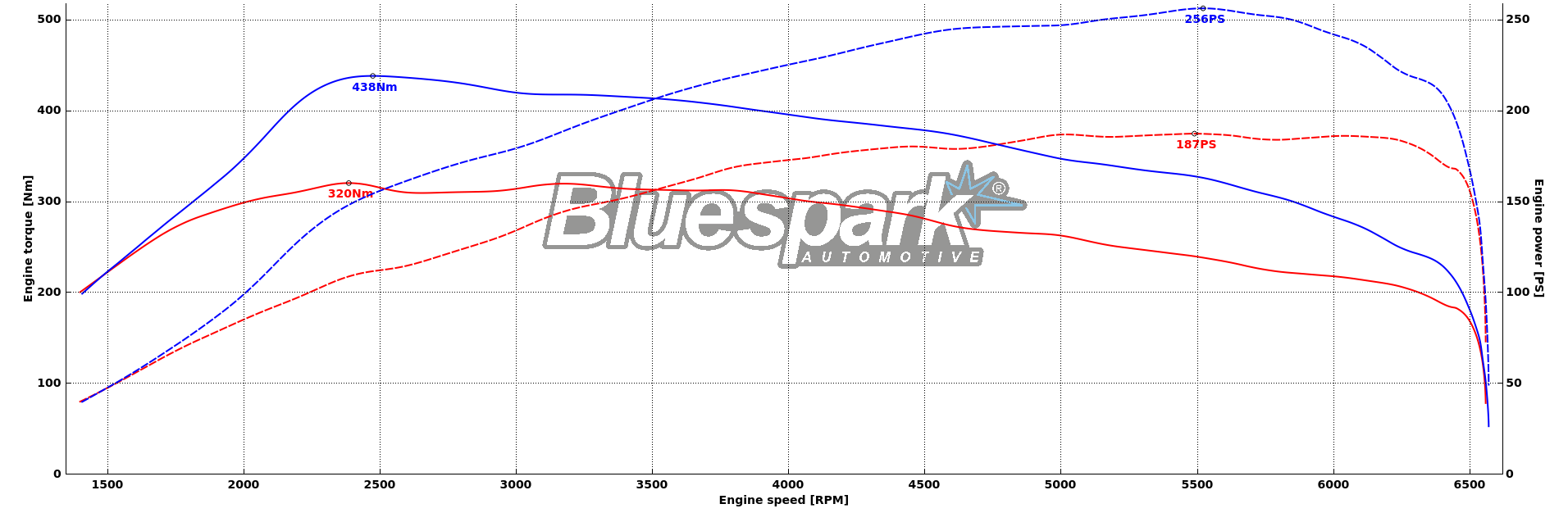

BMW 320i (G20):
Stock Power -184hp ➡️Tuned Power - 254hp
Stock Torque - 300Nm ➡️ Tuned Torque - 436Nm
Torque increases are often even more noticeable, improving acceleration, towing capability and drivability.
How to Install a Tuning Box
Installing a tuning box is straightforward and usually takes less than 20 minutes.
Step 1 – Locate the Engine Sensors
Open the bonnet and locate the relevant sensors, typically:
fuel rail pressure sensor
boost pressure sensor
These sensors are usually located on the engine or intake system.
Step 2 – Connect the Wiring Harness
Disconnect the factory sensor connector and attach the tuning box harness between the sensor and the original connector.
The harness is designed to fit only the correct sensors.
Step 3 – Secure the Module
Mount the tuning box in a safe location within the engine bay using the supplied brackets or cable ties.
Ensure the module is positioned away from excessive heat or moving parts.
Step 4 – Start the Engine
Once installed, start the engine and ensure everything is running smoothly.
Most tuning boxes begin optimising engine performance automatically.
So that we can make every installation as easy as possible for the customer, we supply an engine specific photo step by step installation guide with every tuning box order. You can view these on the product listing pages when you select your vehicle.
Click here to view or sample pages of installation and user guides.
We also have a huge range of informative installation videos on our Bluespark YouTube channel. Please use this link to view our YouTube installation video
Plug-and-Play Installation
Unlike ECU remapping, which requires specialised equipment and software, tuning boxes are designed for easy installation.
Most systems connect directly to existing engine sensors using manufacturer-specific wiring harnesses.
Installation usually takes 10–20 minutes and requires no specialist tools.
Fully Reversible
One of the biggest advantages of tuning boxes is that they can be removed at any time.
This means the vehicle can be returned to its original factory configuration if required.
This is particularly useful when:
- selling the vehicle
- visiting a dealership
- transferring the tuning box to another compatible vehicle
Benefits of Installing a Tuning Box
There are several reasons why tuning boxes have become one of the most popular engine upgrades.
Increased Power and Torque
A tuning box unlocks additional performance from your engine by optimising fuel delivery and turbo boost.
Drivers typically experience:
faster acceleration
stronger mid-range pull
improved overtaking performance
Improved Fuel Efficiency
In many driving conditions, improved engine efficiency can lead to better fuel economy.
Because the engine produces more torque at lower RPM, drivers may need less throttle input to maintain speed.
Many users report fuel economy improvements of 5–10% during normal driving.
No Permanent ECU Changes
Because tuning boxes operate externally, the ECU software itself remains unchanged.
This makes them a popular option for drivers who want additional performance without permanently modifying their vehicle’s engine management system.
Tuning Box vs ECU Remap
One of the most common questions drivers ask is whether they should choose a tuning box or ECU remap.
Both options can increase engine performance, but they work in different ways.
| Feature | Tuning Box | ECU Remap |
|---|---|---|
| Installation | Plug-and-play | ECU programming |
| Reversible | Yes | No |
| Installation time | 10–20 minutes | 1–2 hours |
| Transferable | Often | No |
| Permanent ECU changes | No | Yes |
Tuning boxes are generally preferred by drivers who want:
a reversible upgrade
easy installation
flexibility between vehicles
Remapping can sometimes offer slightly higher peak gains but involves permanently modifying the ECU software.
For many drivers, the convenience and flexibility of a tuning box make it the better option.
Are Tuning Boxes Safe for Your Engine?
A common concern is whether tuning boxes are safe.
When designed and calibrated correctly, high-quality tuning boxes operate within safe limits set by the engine manufacturer.
Reputable tuning box manufacturers invest heavily in:
dyno testing
road testing
safety calibration
sensor monitoring
These systems ensure the engine operates safely under different driving conditions.
However, quality varies significantly between products.
Low-quality tuning boxes may simply increase fuel pressure without proper calibration, which can potentially lead to engine issues.
For this reason it is important to choose a tuning box from a reputable manufacturer with proven engineering and testing.
Choosing the Right Tuning Box
Not all tuning boxes are created equal. When selecting a tuning box it is important to consider several factors.
Vehicle Compatibility
Different engines require different calibration profiles.
Always ensure the tuning box is designed specifically for your engine model.
Multi-Channel Tuning
Advanced tuning boxes monitor multiple engine sensors simultaneously to deliver smoother and more precise performance gains.
Single-channel systems are generally less sophisticated.
Manufacturer Testing
Choose a manufacturer that conducts:
dyno testing
road testing
engine safety validation
Extensive testing ensures reliable performance improvements.
Warranty and Support
Reputable manufacturers provide strong warranty coverage and technical support to ensure long-term reliability.
Find the Right Tuning Box for Your Vehicle
Modern tuning boxes are available for a huge range of vehicles, including:
BMW
Audi
Volkswagen
Ford
Mercedes-Benz
Land Rover
Toyota
Nissan
Use our vehicle search tool to find the right tuning box for your specific engine.
Frequently Asked Questions About Tuning Boxes
Will a tuning box damage my engine?
When properly designed and installed, a tuning box operates within safe engine limits. Reputable manufacturers test their products extensively to ensure reliability.
Can a tuning box improve fuel economy?
In many cases yes. Improved torque can allow the engine to operate more efficiently, particularly during motorway driving.
Can I remove the tuning box before servicing?
Yes. Tuning boxes can be unplugged in minutes, returning the vehicle to factory settings.
Are tuning boxes legal?
Tuning boxes are legal in most countries when used responsibly. However, drivers should ensure their vehicle complies with local emissions regulations.
Upgrade Your Driving Experience With a Tuning Box
A tuning box offers one of the easiest and most effective ways to improve engine performance without permanently modifying your vehicle.
With simple installation, reversible operation and significant performance gains, tuning boxes provide a flexible upgrade for modern turbocharged engines.
Whether you want stronger acceleration, improved towing performance or better fuel efficiency, a professionally engineered tuning box can transform the way your vehicle drives.
